2-Axis GoPro Gimbal

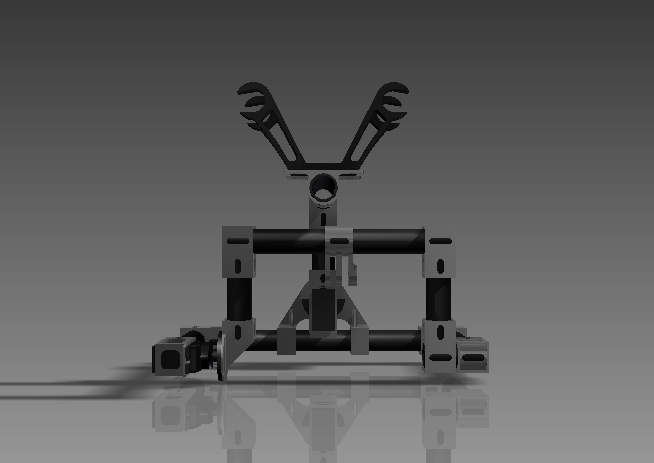

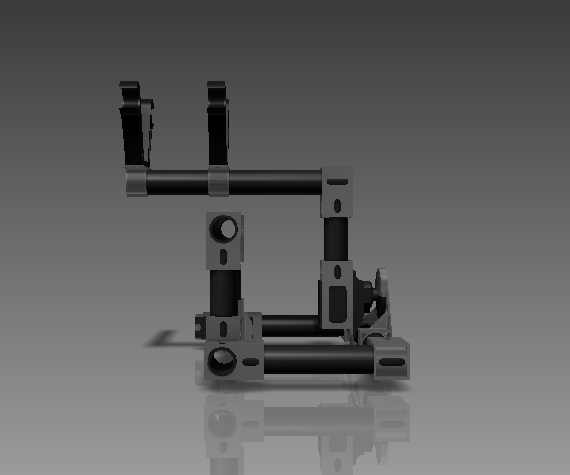

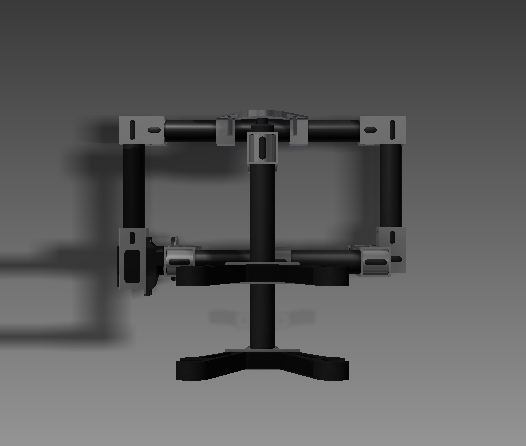

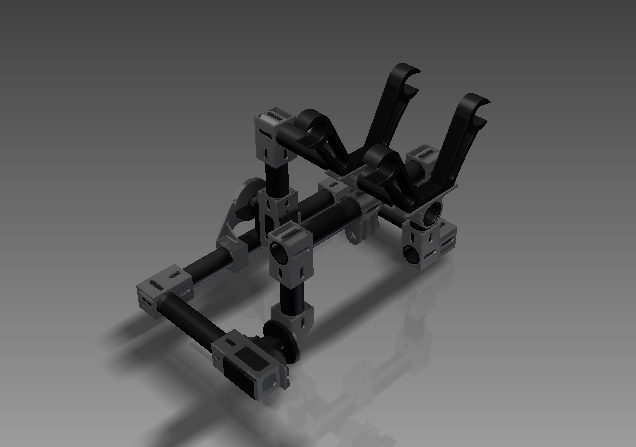

This is a 3D printed 2-axis GoPro gimbal. It is made to support the Gopro while mounted inside of the polycarbonate enclosure. The mounts are designed to work with the Xaircraft DIY frames. The gimbal frame can be made from any half inch dowel or 12mm tube. I designed it to be compatible with the following:



9g EXI Micro Servos

12mm Carbon Tube

Required Lengths:

[Qty. 1] 126mm Tube

[Qty. 2] 120mm Tube

[Qty. 2] 70mm Tube

[Qty. 3] 40mm Tube

The plastic parts can be purchased from here.

Contact me if you require special mounts or attachments: adam@polakiumengineering.com
